Play and Rec buttons work just like they should. The Restart button starts playback from the beginning and reloops playback from where it was started.
The Erase button functions as a modifier, allowing knobs to be reset and display additional conrols.
Navigate your Session
In Navigate mode, the four blue pads move your cursor up, down, left, and right in your session.
The four purple pads allow you to zoom in and out both horizontally and vertically.
The two white pads allow you to jump to the start and end of your session.
Play Instruments
A Pad Mode is built into Pro Command MIDI so you can quickly switch between navigating your session and playing an instrument all from the same Maschine controller and without having to switch templates or modes.
Find your Mark
In Scene mode, the fourteen purple pads allow you to jump to location markers in your Pro Tools session.
Holding the Erase button and pressing a pad will assign that pad's marker to the cursor's current location.
The two white pads allow you to jump to the start and end of your session.
Displays and Channel Controls
Abbreviated track names will be displayed on screens of non-Mikro Maschine models.
The knob beneath each channel name can be used to control its volume level and pan.
The button above each channel name can be used to mute, solo, and select the track.
Control 32+ Channels
Eight channels are controlled in each of the four groups (A-D) for a total of thirty-two tracks controlled at once.
The E, F, G, and H group buttons can be used to change which channels are controlled by Pro Command MIDI, making it easy to switch between controlling different parts of your large session.
Jog & Shuttle
Turn the Jog Wheel on Maschine Studio to jog through your session.
Press the Jog Wheel and turn to make a selection. Then, use the Copy, Paste, and Clear buttons to manipulate your selection or move it around your session.
Footswitch Playback
Start and stop playback of your Pro Tools session by connecting a footswitch to Maschine Studio's footswitch ports.
This can be especially useful for solo recording artists: no need to run from the computer to the microphone, just put a footswitch nearby!
Master Fader
Maschine Studio's master knob and volume meter will display and control the volume levels for the first track controlled by Pro Command MIDI, regardless of which group is currently selected. If you move your session's Master Fader track to the top of your session, this will give you quick access to it.
Pro Tools
Pro Command MIDI
Controller Editor

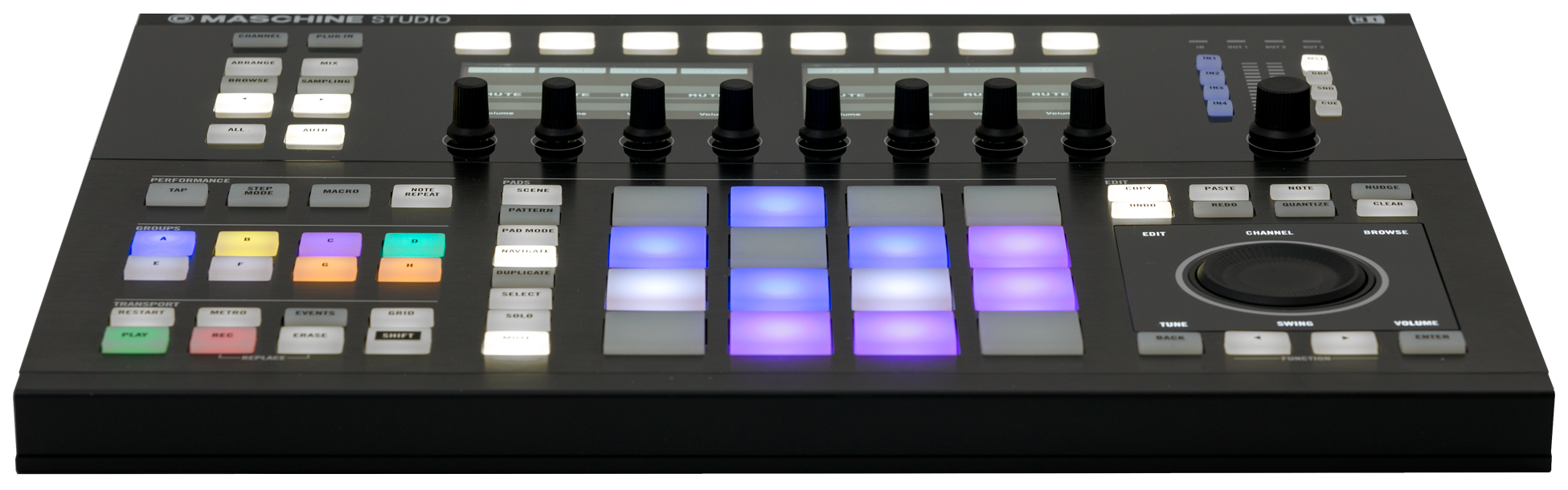

Maschine Hardware
How it Works
Pro Command MIDI runs quietly in the background, translating between Maschine's MIDI messages and Pro Tools' HUI commands.
Pro Command MIDI includes pre-built templates for each Maschine model (except Jam) that are loaded into Controller Editor. These templates allow the Pro Command MIDI app to communicate with the Maschine hardware.

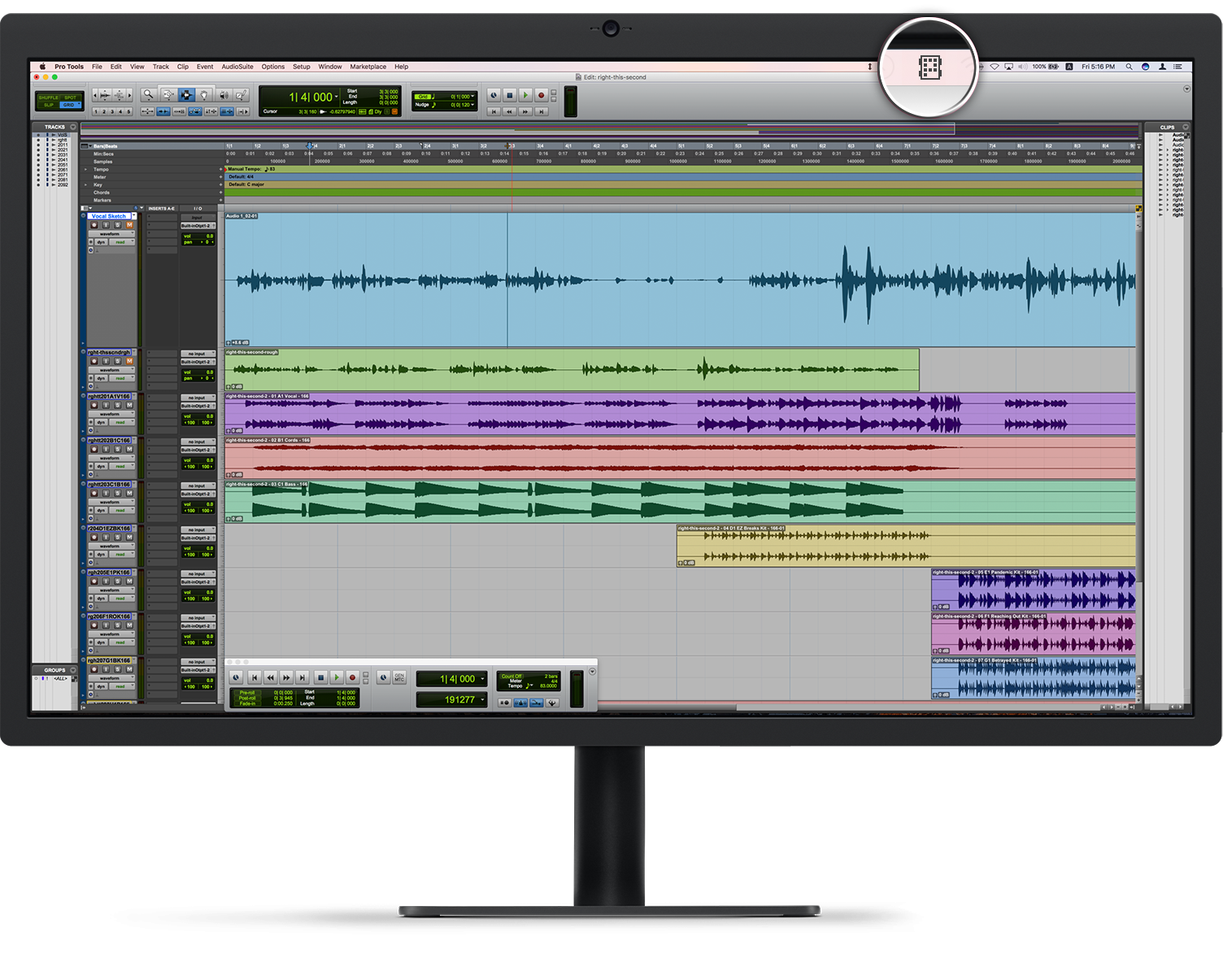

How it Looks
Pro Command MIDI works in the background and appears as an icon in the menu bar. If desired, it will launch at login and, after setup, you will forget it is even there!

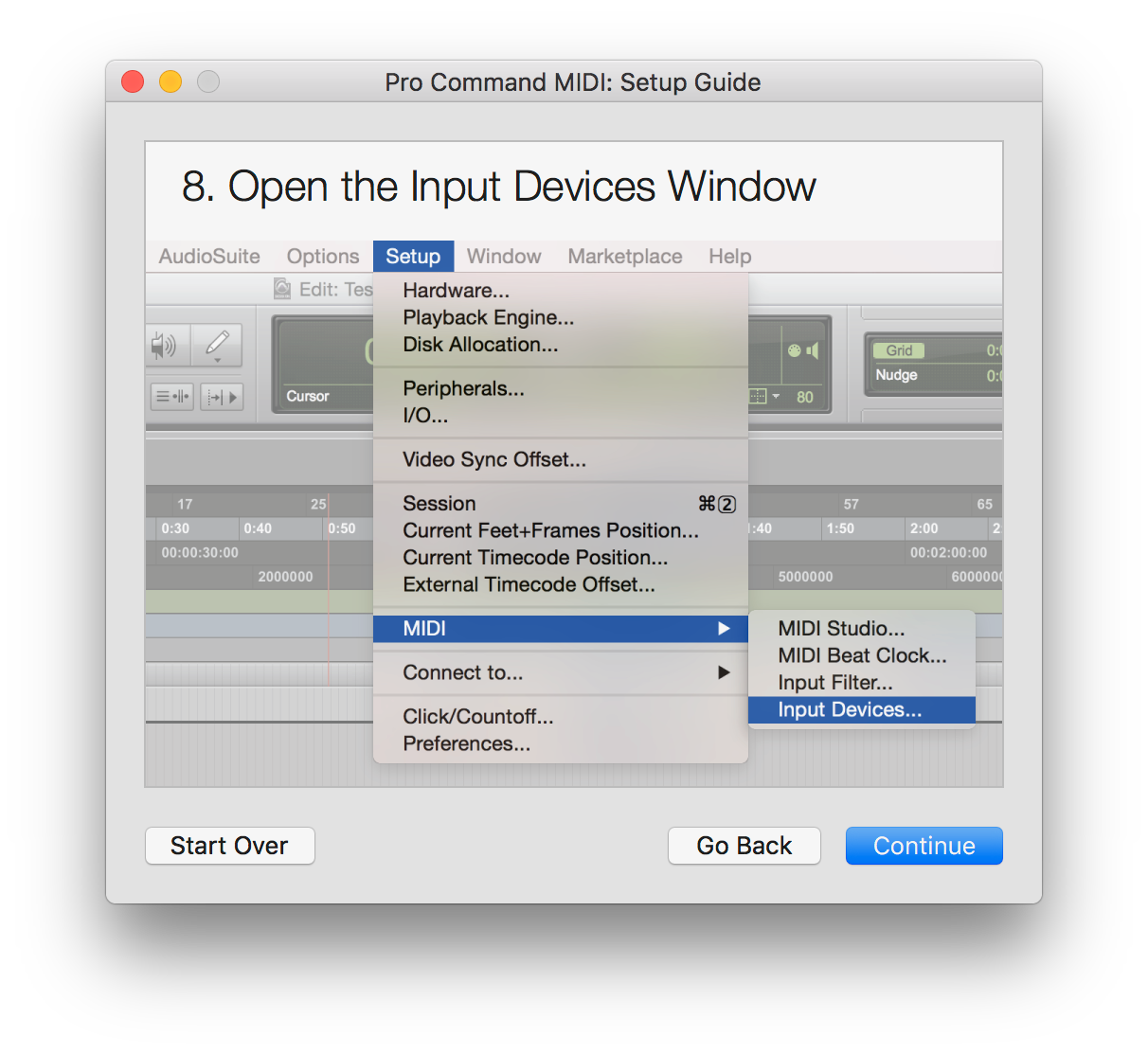

Built-in Setup Guide
Accessible from the menu, the setup guide walks the user through the entire setup process, staying on top of other windows for convenience.

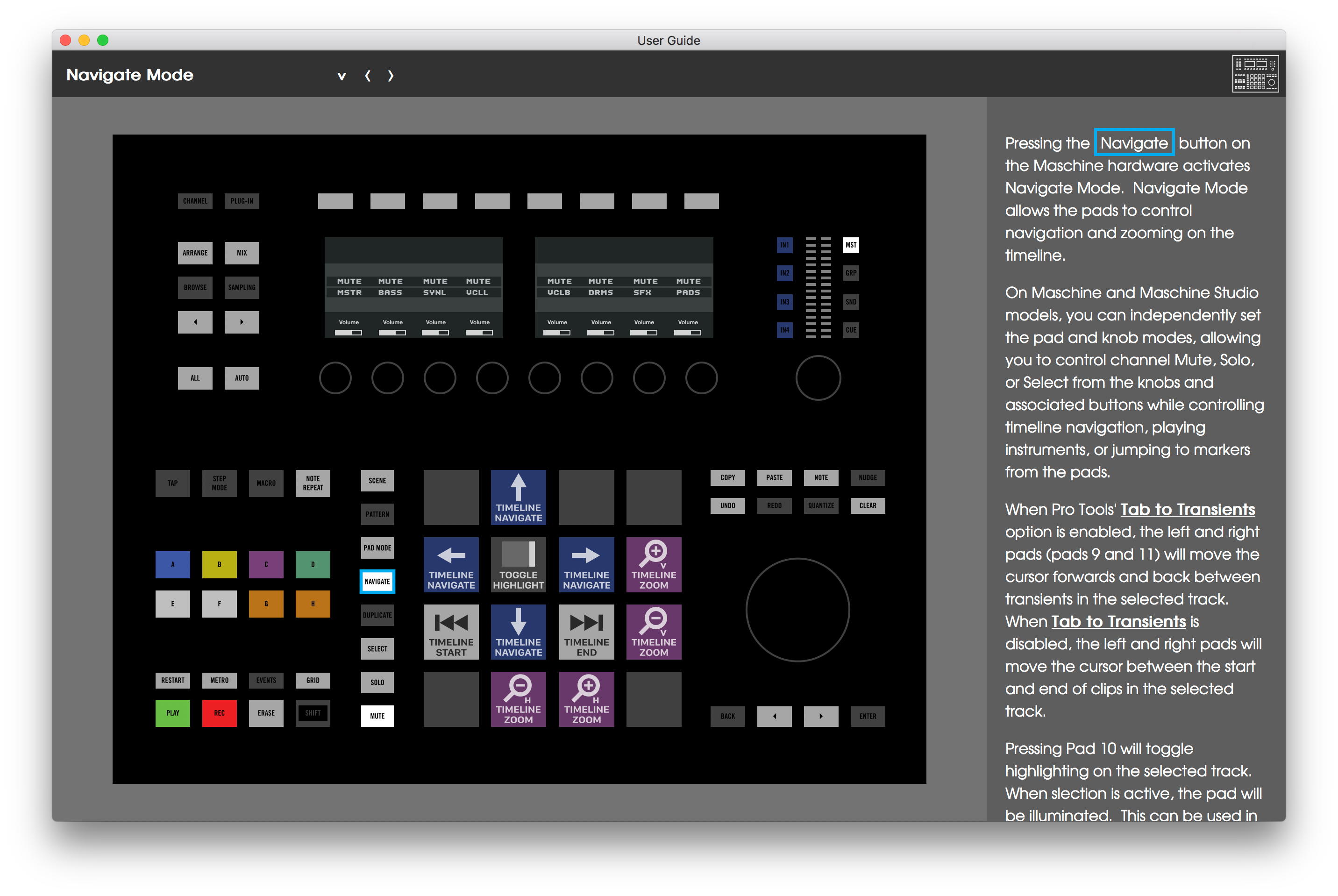

Built-in User Guide
Built-in tutorials for each controller model are available from the menu.
Pro Tools Software: Pro Tools and Pro Tools HD v6.1+ (Unfortunately, Pro Tools First does not support external controllers.)
Operating System: OS X 10.10+, macOS 10.12+
CPU Architecture: Apple Silicon, Intel. (Universal macOS Binary)
¹ Please note that due to a problem whereby Maschine Mk3 and Maschine Mikro Mk3 hardware become unresponsive when Pro Tools is launched (regardless of whether Pro Command MIDI is present or not), you may need to implement a workaround in order to use Pro Command MIDI with Maschine Mk3 hardware. Please find further details and instructions here.
